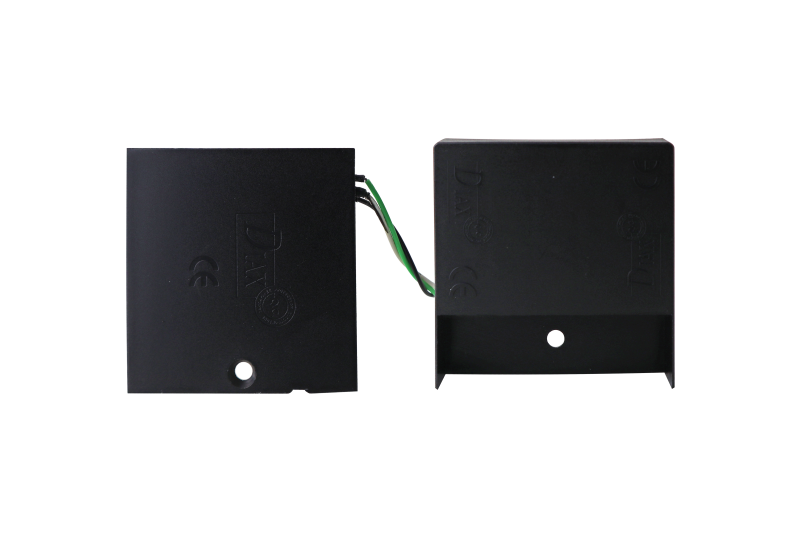

DPM-300

Door position monitor for 300kg surface magnetic locks

Ref: F0514000010

When installed alongside a electro-magnetic lock, the DPM-300 ensures reliable door position monitoring. It is an ideal solution for auto-relock control and saves the expense and time fitting door contacts. This model is for use with surface mount 300kg maglocks only.

Scroll to learn more

Key features

  • Accurately monitors the door position

  • Retrofits to surface magnetic locks

  • Saves time & expense of fitting door contacts

  • 1x NO/NC changeover contact

  • Compatible with 300kg surface mount maglocks

  • For other options see DPM-500 (500kg maglocks) or DPM-400 (400kg maglocks)

Downloads & links

Features

  • Technical specifications

    • Number of Relays
      1
    • Mounting
      Surface, fitted to maglock cover plate and armature plate
  • Electrical specifications

    • Max Power Consumption (mA)
      100mA
  • Dimensions

    • Product Height (mm)
      65.4
    • Product Width (mm)
      40
    • Product Depth (mm)
      11
    • Product Weight (kg)
      0.02
