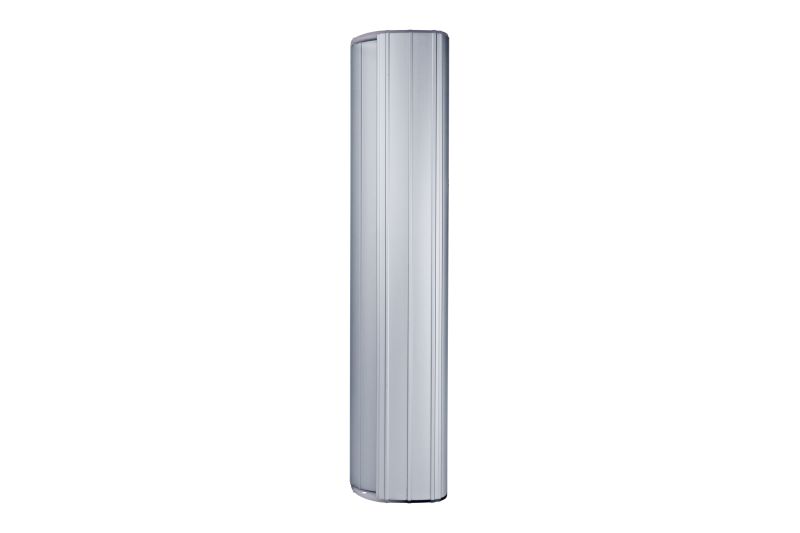

P300EVO

Architectural handle, 1x300kg monitored magnet, 500mm, LED indication

Ref: F0519000141

Magnetic handles are becoming increasingly popular with sites that require strong holding forces and more aesthetic solutions. The entire range from CDVI is ideal for locations where a stronger lock is essential; such as schools, halls of residence and other public buildings.

P300EVO is a 500mm handle incorporating 1 x 300kg monitored magnet and can be used externally. The handles are monitored and indicate the status of the door (open or closed) with LEDs.

Scroll to learn more

Key features

  • Surface mount architectural handle

  • Low power consumption

  • Retrofit or new build

  • Vertical or horizontal installation

  • Custom RAL colours (optional)

  • Visual feedback with blue and green LED

Downloads & links

Features

  • Technical specifications

    • Fail Safe / Fail Secure
      Fail safe
    • Mounting
      Surface, vertical or horizontal
    • Min Temperature (°C)
      -20
    • Max Temperature (°C)
      60
  • Electrical specifications

    • Min. Voltage (V)
      12Vdc
    • Max Voltage (V)
      48Vdc
    • Voltage AC/DC
      DC
    • Max Power Consumption (mA)
      325mA @ 12Vdc / 165mA @ 24Vdc (per maglock)
  • Certifications

    • IP Rating
      IP42
    • IK Rating
      IK10
  • Appearance

    • Surface Material
      Satin anodised aluminium
    • Colour
      Silver, Black, RAL colour options
  • Dimensions

    • Product Height (mm)
      500
    • Product Width (mm)
      105
    • Product Depth (mm)
      63
    • Product Weight (kg)
      2.5kg
